SinCrest Sinus Lift Kit

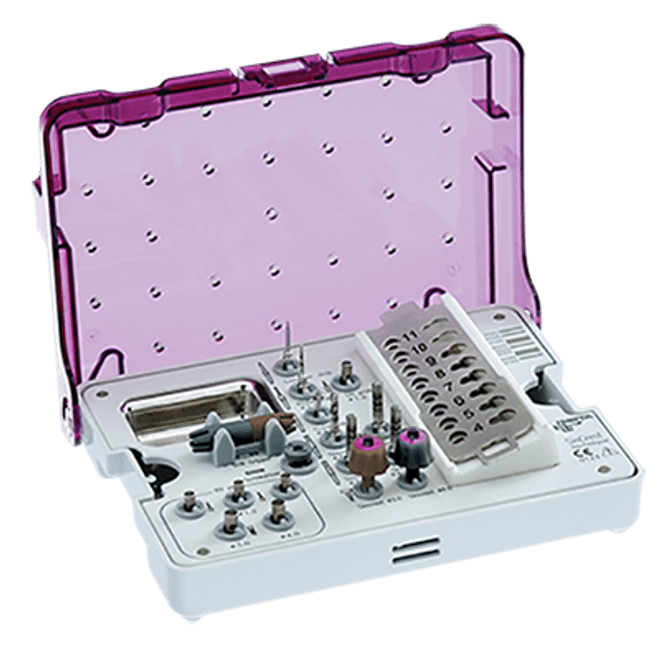

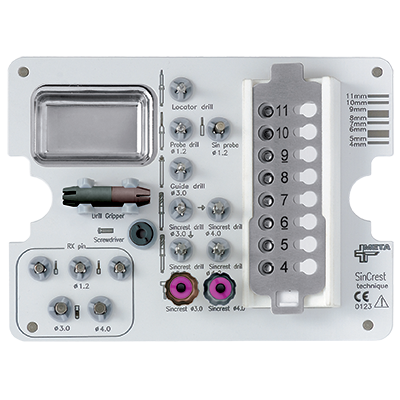

SinCrest is an innovative kit used to perform a crestal sinus lift when preparing the implant site near the Schneiderian membrane. The kit includes contra-angle side-cutting drills, depth stops, and a newly designed manual osteotome.

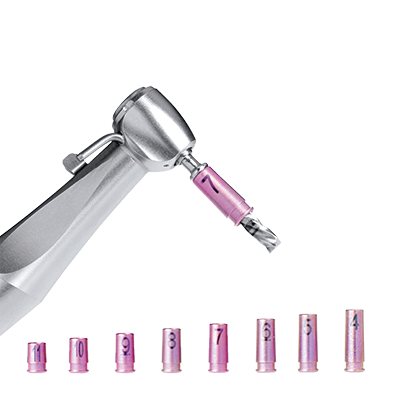

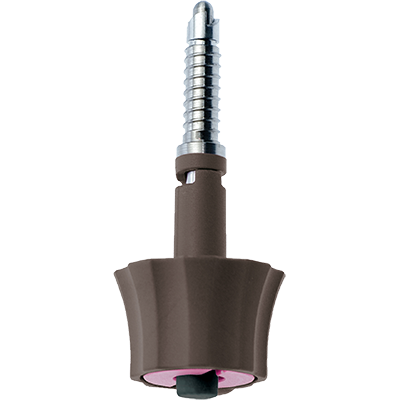

The side-cutting drills are used with the depth stops to drill a guide hole in the alveolar bone at up to 8 different controlled depths. The SinCrest manual osteotome is then used to obtain a controlled fracture of the bone floor through a step-by-step process of advancing 0.5 mm at a time. The blunt probe included in the SinCrest osteotome allows the constant monitoring of the residual resistance of the maxillary sinus and enables the user to lift it without tearing or perforation. The SinCrest technique may be used in sinus lift cases where the residual bone availability is 5 mm to 11 mm and when placement of an implant 3.75 mm in diameter or larger is planned.
